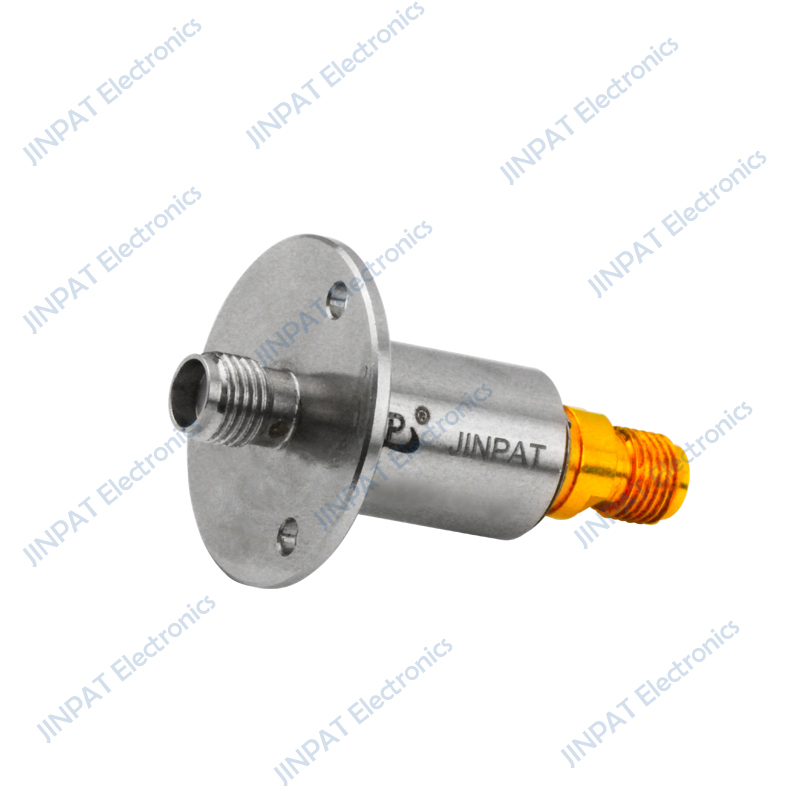

LPHF-01G Hign Frequency rotary joints

share
copy Link
Facebook
X
LinkedIn
Frequency range DC-50GHz
VSWR,max 1.3@0-10GHz,1.4@10-26.5GHz,1.7@26.5-40GHz
Optional Integrated transmission of high frequency signal and power signal or other signals
Consult immediately
DetailInstallationReview(0)

High frequency rotary joints include coaxial rotary joints, waveguide rotary joint, coaxial waveguide rotary joints. They are also known as high frequency slip rings and radio frequency slip rings. High frequency rotary joints are specially designed to transmit high speed serial digital signals like high definition signals, RF signals and microwave signals. The slip ring series support single channel and multi channels transmission of high frequency signals. There are also hybrid solutions that support hybrid transmission of high frequency signals with control signals, communication signals, power signals and fluid medium.







Specifications

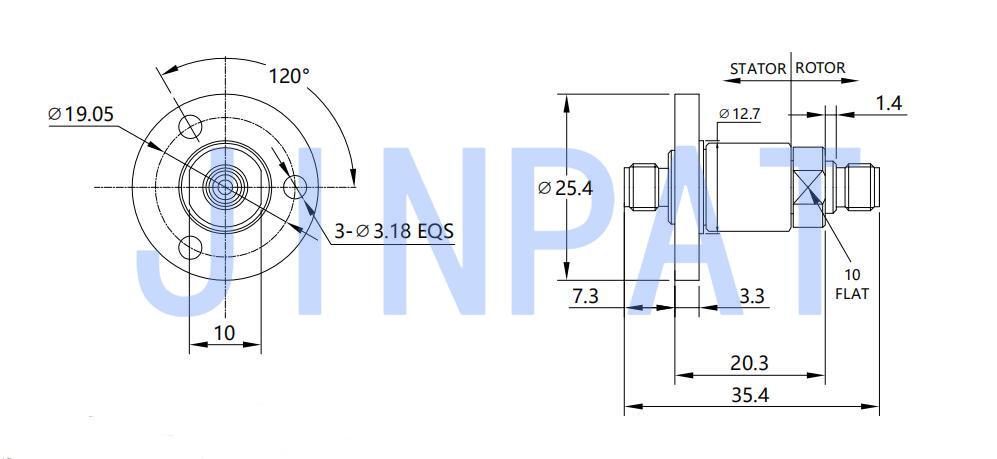

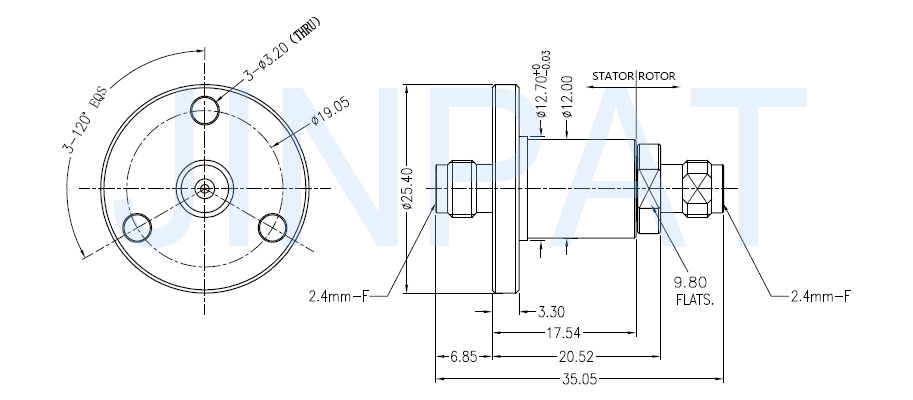

Interface Tpe2.4mm-F(50Ω)

Axial Load On Interface,Max

±2N

Frequenc Range

DC-50GHzRadial Load On Interface,Max.±2N
VSWR,Max.

1.31@10GHZ:1.41@26.5GHz

1.72@50GHZ

Bod MaterialStainless Steel
VSWR WOW

0.06@26.5GHZ

0.21@50GHZ

Insulator Material

Engineering

plastics

Insertion Loss,Max.


0.32dB@10GHZ;0.52dB@26.5GHZ

0.92dB@50GHZ

MarkingAdhesive Label
Insertion Loss WOW

0.11dB@26.5GHZ

0.16dB@50GHZ

Weight,approx

30g

Peak Power,Max.1000WIP Protection LevelIP60
Average Power,Max.

50W@1GHZ

3W@50GHZ

Operation Temperature-45~+80°C
Phase WOW,Max1°@26.5GHZ

2°@50GHZ

Storage Temperature-45~+80°C
Rotating Speed,Max.200rpmHumidit(Operation)95％
Life Time,Min5 Million RevolutionsHumidit(St)95％
Starting Torque2Ncm MaxContinuous Rotational Torque2Ncm Max
