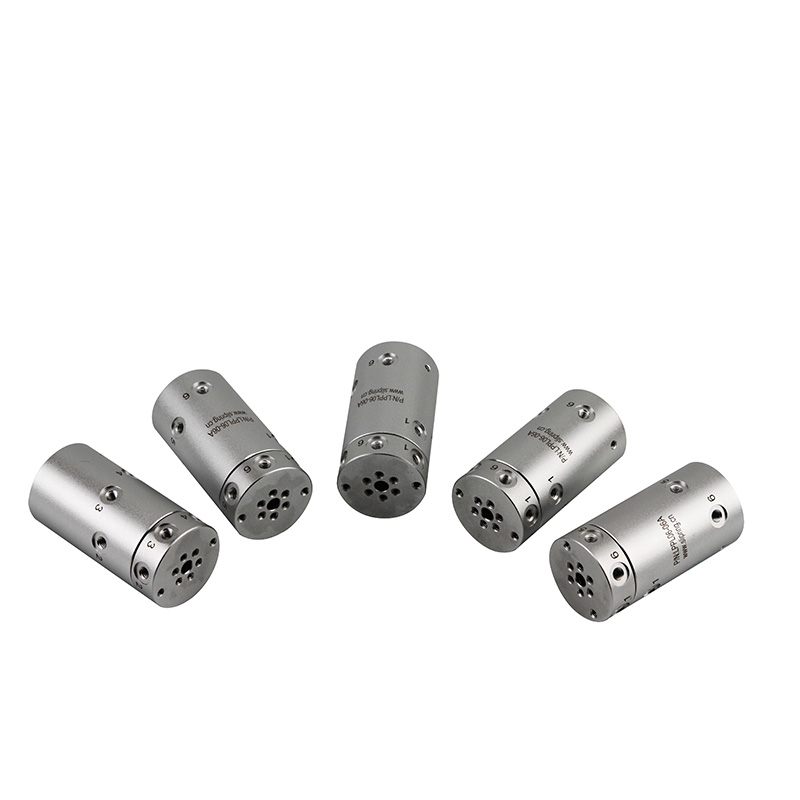

LPPL06-06A-EN Standard Pneumatic Rotary Unions

Number of Circuits /
Length(L)(mm) 79
Optional Inner diameter, outer diameter / number of channels / current & voltage / length of wire, connecting terminal / shell material and color / protection grade / signal and power supply can be transmitted
Consult immediately
Parameters
Number of Circuits
/
Length(L)(mm)
79
Optional
Inner diameter, outer diameter / number of channels / current & voltage / length of wire, connecting terminal / shell material and color / protection grade / signal and power supply can be transmitted
I know
DetailInstallationReview(0)

Description:

A pneumatic slip ring is a mechanism used to transfer fluid (under pressure or vacuum) from a stationary inlet to a rotating outlet, preserving and isolating the fluid connection.

Pneumatic slip rings are engineered to endure a wide range of temperatures and pressures for a variety of conditions and environments. In addition, rotary unions may integrate multiple passages and handle different types of fluid simultaneously.


Rotary Unions & Joints Spec.

Mechanical Data

Max. Operating Pressure

Positive Pressure

1Mpa, Vacuum -1.5kPa

Working Speed

0~100rpm

Medium Type

Air

Working Temp.

-20°C~+60°C

Passages(Gas/Flow)

6 in 6 out

Work Humidity

≤60%RH

Pipe Size

∅4mm pipe, M5 port

Housing Material

Aluminum Alloy

Torque

≤1.5 N.m

IP Grade

IP51



LPPL06-06A-EN-Outline Drawing
