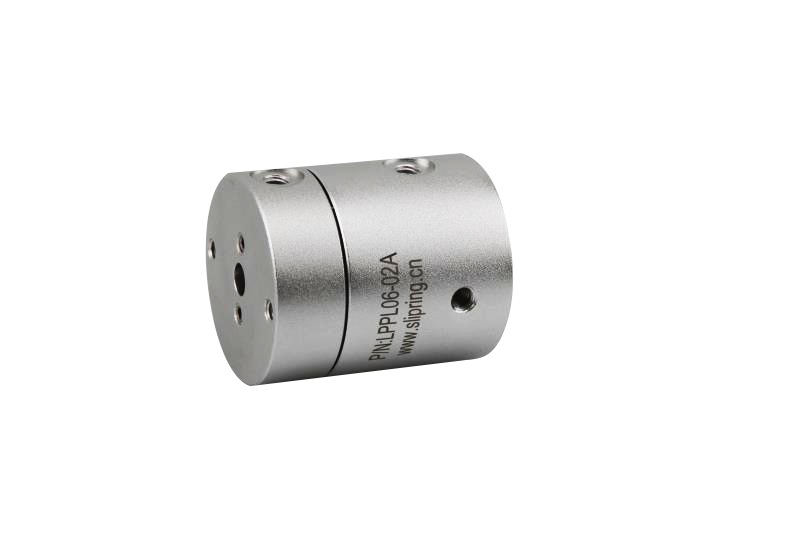

LPPL06-02A-3602 Hydraulic Rotary rotary joints

Number of Circuits 36
Length(L)(mm) 105.2
Optional Inner diameter, outer diameter / number of channels / current & voltage / length of wire, connecting terminal / shell material and color / protection grade / signal and power supply can be transmitted
Consult immediately
Parameters
Number of Circuits
36
Length(L)(mm)
105.2
Optional
Inner diameter, outer diameter / number of channels / current & voltage / length of wire, connecting terminal / shell material and color / protection grade / signal and power supply can be transmitted
I know
DetailInstallationReview(0)

Description:

A pneumatic slip ring is a mechanism used to transfer fluid (under pressure or vacuum) from a stationary inlet to a rotating outlet, preserving and isolating the fluid connection.

Pneumatic slip rings are engineered to endure a wide range of temperatures and pressures for a variety of conditions and environments. In addition, rotary unions may integrate multiple passages and handle different types of fluid simultaneously.

Rotary Unions & Joints Spec.

Mechanical Data

Max. Operating Pressure

Positive Pressure 1Mpa, Vacuum -1.5kPa

Working Speed

0~100rpm

Medium Type

Air

Working Temp.

-20°C~+60°C

Passages(Gas/Flow)

2 in 2 out

Work Humidity

≤60%RH

Pipe Size

∅4mm pipe, M5 port

Housing Material

Aluminum Alloy

Torque

≤0.6 N.m

IP Grade

IP50

Electronic & Electric

Mechanical

Circuits

Total

36 CKT

Working Speed

0~100rpm

Detail

36x2A

Inner Diameter

/

Rating Voltage

240V AC/DC

Contact Material

Precious Metal

Dielectric Strength

≥500VAC@50Hz(P) ≥100VAC@50Hz(S)

Housing Material

Engineering plastics

Insulation Resistance

≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S)

Lead Wire Length

Stator:250±5mm   Rotor:250±5mm

Dynamic Resistance

Fluctuation Value

≤35mΩ

Remarks

Environment

Application

/

Working Temperature

-20°C~+60°C

Other

/

Working Humidity

≤60%RH

Note: "P" stands for power, "S" stands for signal.
