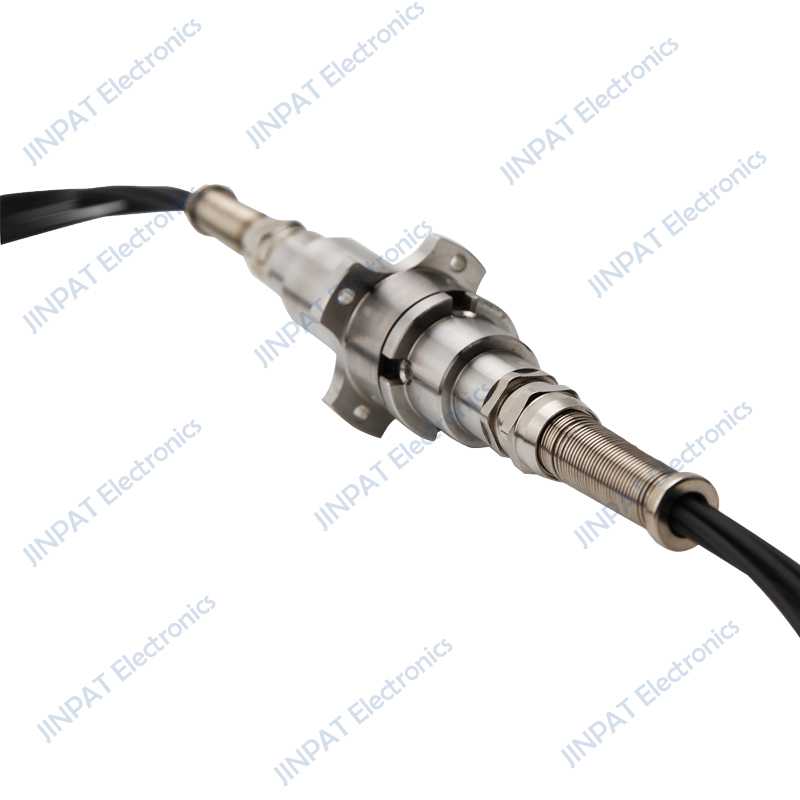

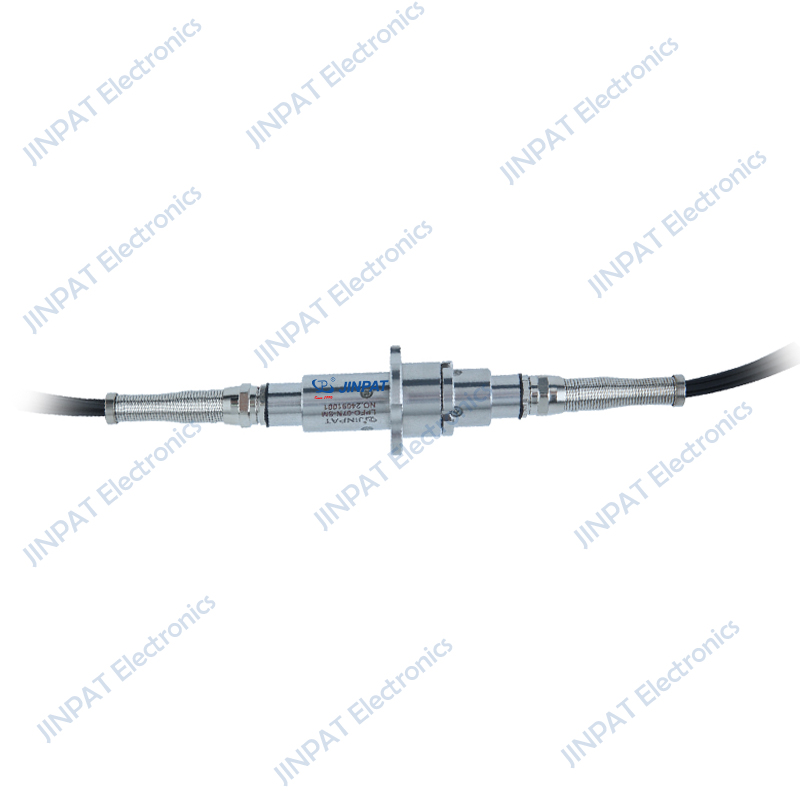

LPFO-02N-A Fiber Optic Slip Ring

share
copy Link
Facebook
X
LinkedIn
Number of Circuits 2
Lead Size Φ26/Φ38*119
Wavelength range 850-1550
Insertion loss ＜4dB
Insertion loss ripple ＜2dB
Return Loss ＞40dB
Optional Single can be customized,housing material and driving connector are optional
Consult immediately
DetailInstallationReview(0)

LPFO optical slip rings are also known as fiber optic rotary joints, optical rotatory connector. The optical slip ring adopts optical fiber as media. It offers the best solution to transmit great capacity data and signals. The optical slip ring can be integrated with traditional electrical slip rings. The hybrid slip ring model is able to transmit power, signals and high speed data.




Specifications
Fiber types

SM(9/125um)

MM(50/125um or 62.6/125um)

Jacket types2.0mm/armor
Channel number2Connector typesFC/SC/ST/LC(PC or APC)
Wavelength range

SM:1310-1550nm

MM:850/1300nm

Estimated life cycle＞100 million revolutions
Insertion loss＜4dBVibrationMIL-STD-167-1A
Insertion loss ripple＜2dBMechanical shockMIL-STD-810G
Storage temperature-55~+85℃Package stylePigtails on both ends
Return lossSM:≥40dB   MM:≥25dBIP ratingIP65 or IP67
Crosstalk≥50dBMax Optical power23dBm
Weight, approx200g（No tail cable andconnection included）Maximum speed300rpm
Working temperature

-20~+65℃(Industrial grade)

-45～+75℃ (Military grade)
