With more than 20 years of expertise in providing standard and custom construction products for harsh environments, JINPAT is a leading supplier of high-performance carbon slip ring manufacturing.

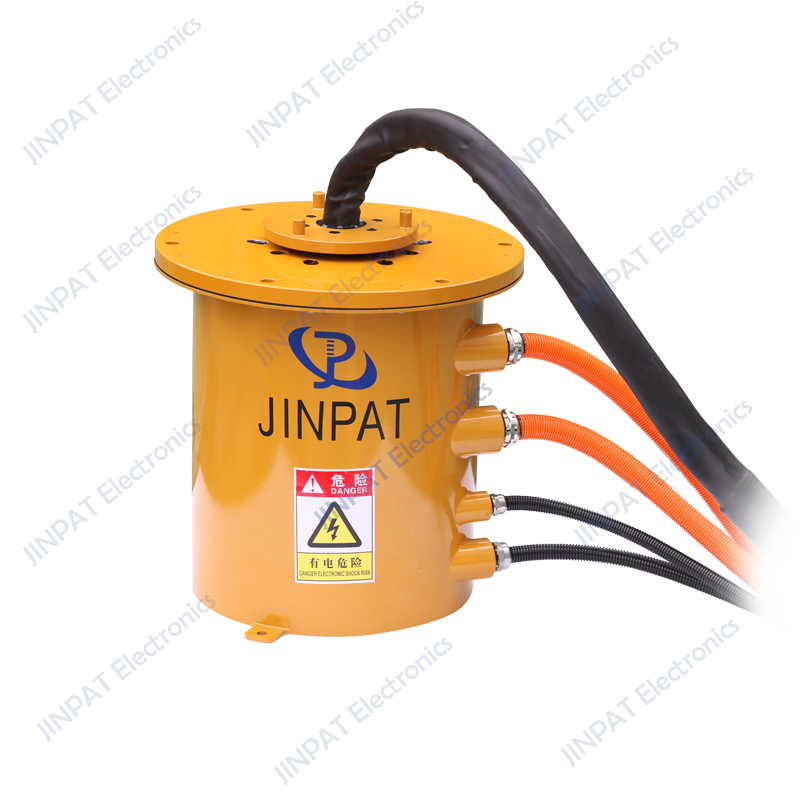

Semi-closed cylinder structure. With stator installed facing up, protection grading reaches up to IP67. High power unit and weak power unit are independent from each other. Anti-interference. Fit for heavy construction facilities. Expected life span exceeds 10 years. Able to cope with harsh environments.
At JINPAT we believe that electrification, connectivity , and automation are interconnected themes that build upon each other.This idea has driven the design of JINPAT’s mobile machinery platform; built for a zero emission, increased productivity, and an always connected future. We collaborate with you to customize our platform to the unique needs of your machine— It’s how JINPAT helps get you to your future, faster.
| Electronic & Electruc | Mechanical | |||
| Circuits | Total | 18CKT | Working Speed | 0~10rpm (rotor stablized, stator rotates) |
| Detail | 2x600A+4x40A+9xsignal +2xCANbussignal | A hole diameter | / | |
| Rating Voltage | 450V~750VDC/24V~32VDC | Contact Material | High-end Copper Carbon Brush/ Precious Metal | |
| Dielectric Strength | power ring: between circuits ≥2500V@50Hz | Housing | Q235 spray coating (yellow) | |
| Insulation Resistance | power ring: 500MΩ1000VDC signal ring: 300MΩ@300VDC | Lead Wire Length | Rotor Working Pressure: 1.8m~7m Stator WorkingPressure: 3.5m~5m | |
| Environment | Remarks | |||
| Working Temperature | -30°C~80°C | Application | Construction Machinery- Crane | |
| Working Humidity | ≤95%RH | |||
| IP | IP67(Stator Faces Up) | Other | / | |
For more details about this slip ring product, please contact JINPAT.
We will provide you with a free and satisfactory customized solution!
